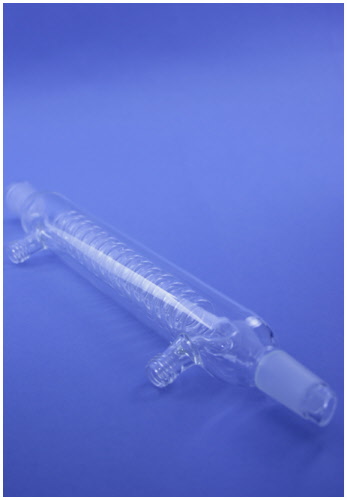

Condensers, Coil (Graham)

SGL – Scientific Glass Laboratories Ltd of Stoke-On-Trent, Staffordshire - one of the UK’s largest manufacturers of laboratory glassware offer a comprehensive range of Laboratory Condensers.
To Place an Order for SGL – Scientific Glass Laboratories Ltd Laboratory Condensers - 01782 816237 or Email Us.

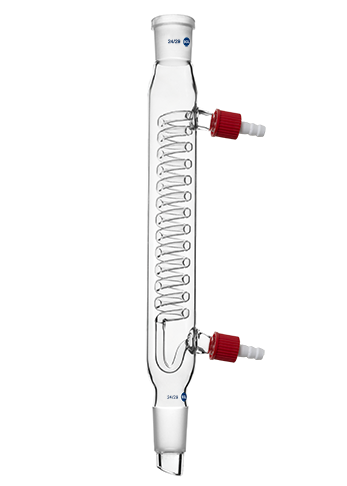

Condensers, Coil (Graham)

SGL
Item

Surface
Area
Cm Sq

 Effective
Length
mm

Overall
Length
mm

 Socket
Size		 Cone
Size		   Each  With Thread,
Cap & Nozzle
CC15/22 230 150 265 B19 B19 29.52   35.50
CC15/33       230 150  265 B24 B24 31.14    38.17
CC30/22  450  300  420 B19 B19  51.09    58.12
  CC30/33  450  300  420 B24 B24  51.09   58.12
  CC30/44  450  300  420 B29 B29 51.09   58.12
  CCX15/4  230  150  260  -   B29  31.79   38.83
  CCX15/5  230  150 260   -  B34   33.27   40.31
  CCX20/6  350  200 300   -  B40   43.49   50.55
  CCX20/7  400  200 315   -  B45   49.69   56.73
  CCX20/8 400 200  315   -  B50   49.69   56.73


  For GL14 Thread Type add "T" to Code No.

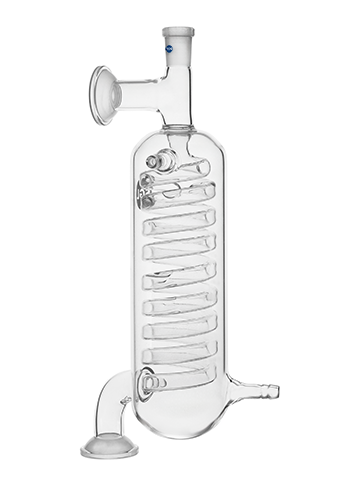

Custom Coil Condenser

Please Enquire About Custom Made Coil Condensers

E&OE Prices & Specification Subject to Change Without Notice - January 2026 Prices Shown GB Pounds Sterling. Ex VAT.
