Correctly Sizing SGL Glass Condensate Traps

A simple way of calculating the correct seal needed for SGL Glass Traps is to use the following formulae.

n.b Formulae apply to all bore sizes of SGL Glass Condensate Traps.

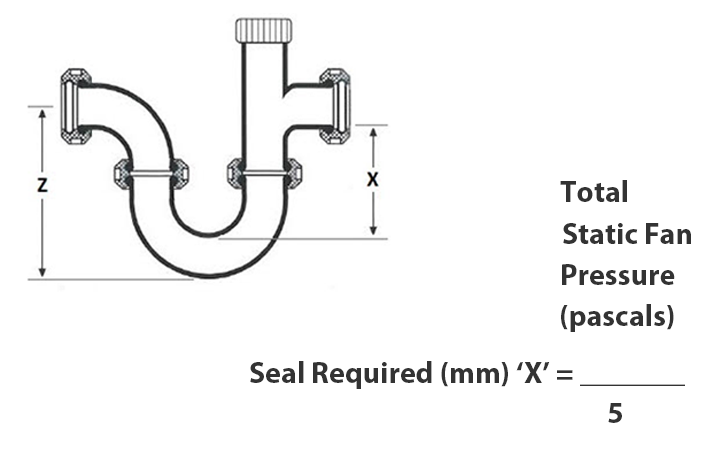

Positive Side of Fan

 Positive Side of Fan - SGL Glass Condensate Traps

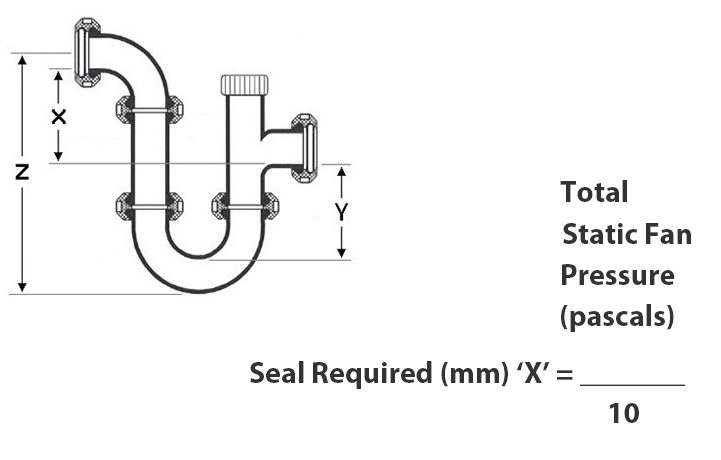

  Negative Side of Fan
   Negative Side of Fan - SGL Glass Condensate Traps


'Y' Dimension should ideally be equal to 'X' although 50% is acceptable.
n.b There is minimum size for dim 'Y' see trap specs.
