Spherical Joints / Screwthreads

SGL – Scientific Glass Laboratories Ltd of Staffordshire - one of the UK’s largest manufacturers of laboratory glassware offer a comprehensive range of Laboratory Glassware Spherical Joints and Screwthreads.

To Place an Order For Laboratory Spherical Joints / Screwthreads call SGL on 01782 816237 or Email Us

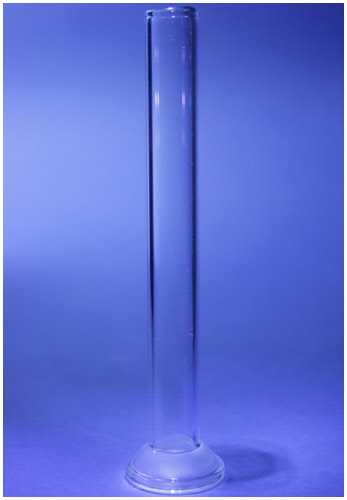

Joints, Spherical, Female

!
                                     Item                                Shank Length mm         Socket Size                     Each
FSJ/13C 100 S13 Capillary Bore 5.53
FSJ/13           100 S13 4.58
FSJ/19  100 S19  4.70
  FSJ/29  100 S29 6.30
  FSJ/35  100  S35   7.70
  FSJ/41  100 S41 9.47
  FSJ/51  100 S51  11.43

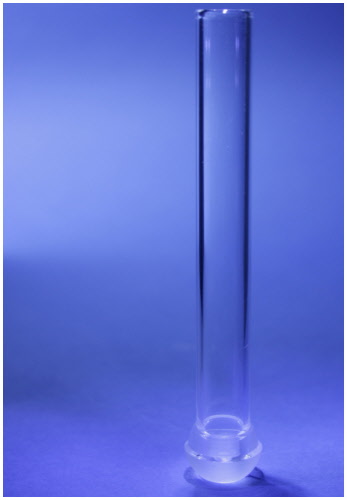

Joints, Spherical, Male

!
                                     Item                                      Shank Length mm         Socket Size                     Each
MSJ/13C 100 S13 Capillary Bore 5.53
MSJ/13           100 S13 4.58
MSJ/19  100 S19  4.70
  MSJ/29  100 S29 6.30
  MSJ/35  100  S35   7.70
  MSJ/41  100 S41 9.47
  MSJ/51  100 S51  11.43

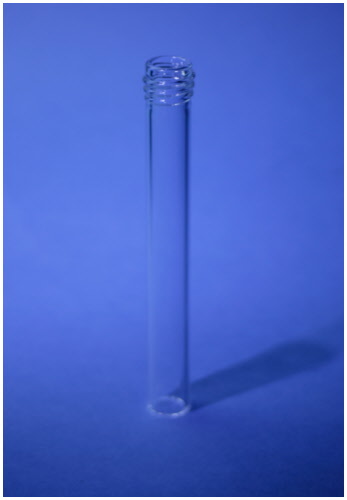

Joints, Screwthread

!
                                      Item  Screwthreads           Shank Length mm        Minimum Bore mm    Each
JS29/2 14  110 7.5 1.27
JS29/3           13  110 7.5 1.34
JS29/4  18  110 10.5  1.60
  JS29/5  24  110 15.5 2.87
  JS29/6  28  110  19.7  3.18
  JS29/7  25  110 20.0 3.50
  JS29/8  32  110 26.0  5.08

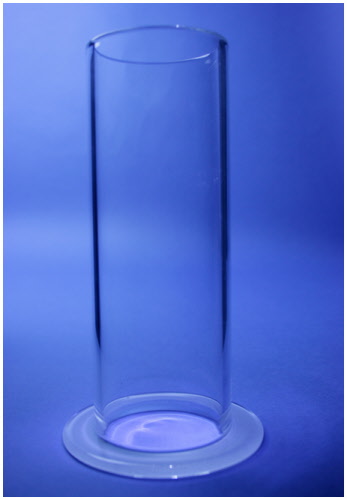

Joints, Flat Flange

!
                                      Item              Dia Bore mm            Flange Diameter mm                                 Each
G1/10 10  30 7.75
G1/25           25  55 9.15
G1/50  50  85  14.74
  G1/75  75 120 19.64
  G1/100  100  150  25.22
