Glass Condensate Trap Connections

Scientific Glass Laboratories Borosilicate Glass Trap - Connecting to other materials / pipework

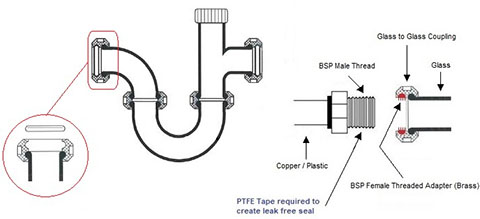

The easiest and most economical way of connecting to other materials is by utilising the standard BSP thread. As most AHU manufacturers have identified that their units are fitted with a glass trap - 95% of manufacturers now fit BSP male threads as standard to their AHU's. SGL have made this its preferred method of connection: A simple 'O' ring - "BSP threaded adapter" made of the same inert material as the coupling is inserted into a standard glass/glass coupling - achieving the desired effect. See below.

        Advantages

  • Standard coupling use throughout the system
  • Integrity of system assured
  • Compression effect of coupling maintained (no slip)
  • Unique coupling design allows the pressure to be spread over the whole circumference of the glass to obtain the maximum seal required, limiting the stress on the glass to a minimum
  • Inert system prevents any degrading of the seal to achieve a no maintenance effect.


A range of PTFE Screwed Pipe Adaptors are also available allowing connection to copper or plastic pipework via BSP thread.



To Place an Order For Glass Condensate Trap Connections call SGL on 01782 816237

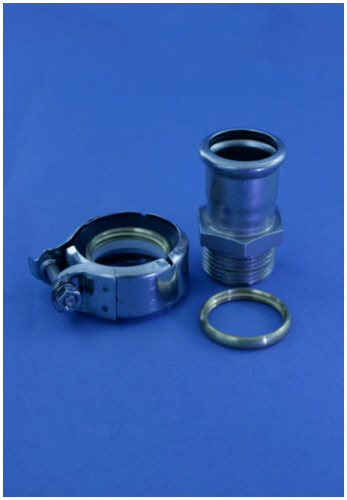

Glass Condensate Trap Connections - Brass Screwed Pipe Adapters

!
                               DN    Internal Thread   Code No.
      20  3/4" BSPT  BA-20
  25  1" BSPT  BA-25
      40 1 1/4" BSPT  BA-40A







40

1 1/2" BSPT

 BA-40B
